shooting glove

Shooting is a gateway technique that produces reliable accuracy and control unattainable with machines. Here are three simple tips to improve your results with shooting.

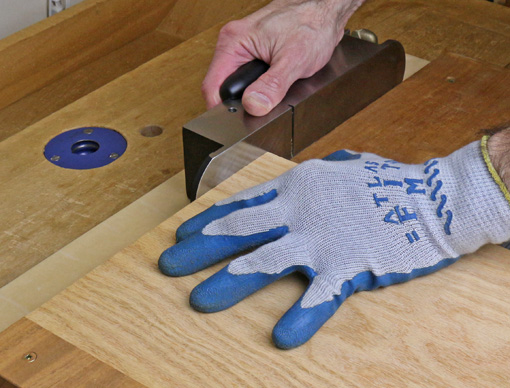

1- Put a grippy glove on your left (non-dominant) hand

An inexpensive, widely available glove with a rubbery grippy palm adds remarkable strength to your hand. The work piece must be controlled with the left hand in two respects. First, it must not slide or pivot during the cutting stroke of the plane. The torque can be considerable with a wide work piece of dense wood. The glove gives you control with much less effort than a bare hand.

Second, in preparation for the cut when shooting end grain, the work must be advanced a tiny amount along the fence toward the plane. Without this, the blade edge will simply clear the work piece because it has already cut away the previously projecting thickness.

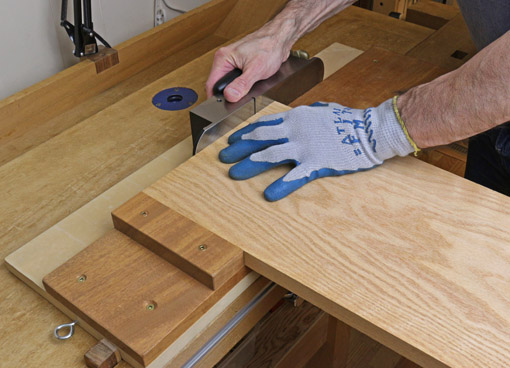

Practically, the work piece is advanced just to meet the toe of the plane sole, as in the photo below. This is done almost without thinking but it is a precise move made more controllable by the gloved hand.

registering the board

2- Simple microadjustability

Everything is not square in woodworking, even when we intend it to be so. For example, when fitting a drawer front to its opening, the sides of the front piece should be made to match the opening, even if it is a bit out of perfectly square.

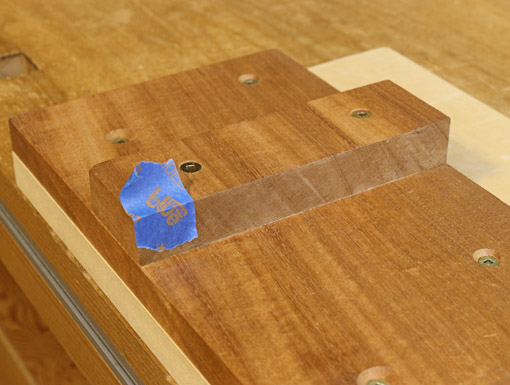

To minutely adjust the shooting angle away from 90°, just place a piece of blue tape at the appropriate end of the shooting board fence. Realize too, that the angle can be adjusted with phenomenal precision by slightly altering the position of the tape.

microadjustability

Of course, this is done empirically, but for some mathematical fun, note that a .003″ thick tape placed at the end of a 7″ fence will change the angle .025° from 90°, and moving it to the 6″ position will adjust that angle by .004°. Using a .001″ plane shaving would create an initial adjustment of .008° from 90°. Shims are magic!

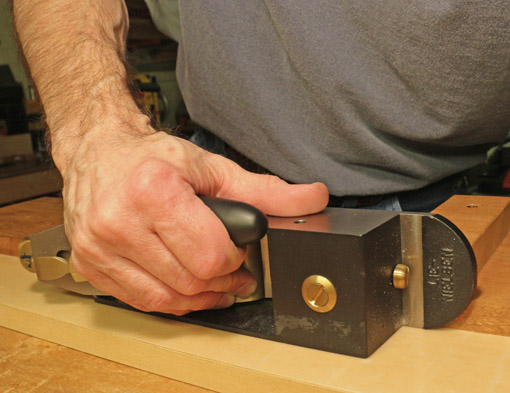

3- Hold the plane like you mean it

Whether you have a dedicated shooting plane like the #9 I use, or use a nice heavy bevel-up bench plane, or, yes, a bevel-down bench plane, grip that righteous beast over the blade. Get the big muscles at the base of your thumb firmly down on the sidewall of the plane, wrap your fingers around into the throat of the plane, and plant the ends of the fingers on the lower part of the lever cap. That way, you can control the ride of the plane on the horizontal track while keeping the sole tight sideways against the vertical runner.

grip the plane for shooting

Furthermore, you get a good tactile sense of the blade’s cutting action. In concert, all of this promotes accuracy by preventing the plane from tipping in any direction as it takes a firm, uninterrupted stroke.

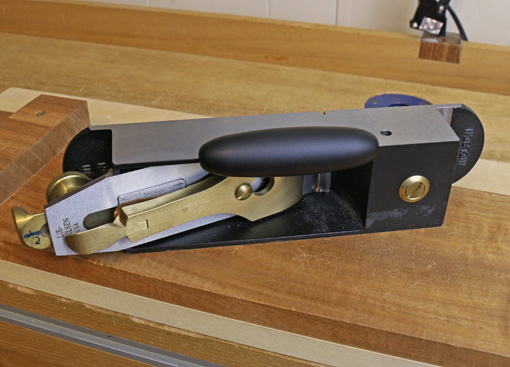

I like the “hot dog” attachment from Lie-Nielsen on the #9. This is something I imagine could also be readily made by the user.

hot dog attachment

Category: Techniques
You can follow any responses to this entry through the RSS 2.0 feed. You can leave a response, or trackback from your own site.

5 Responses

  1. 1
    ralph boumenot

    I like the grippy glove tip. I’ve had a few problems with this especially on wider boards. Have ever compared the #9 to the #51?

  2. 2
    Rob

    Hi Ralph

    I’ve only had the opportunity to try the L-N #51 at shows. It seems more suited to a shooting board with a captive track, which is where the design came from. It uses a bevel-down skewed blade. I liked the Veritas better, which uses a bevel-up skewed blade. I did not like gripping either plane by the handle, especially on a shooting board without a captive track, though I suppose a different grip could be used.

    Rob

  3. 3
    Paul Chapman

    Great tip about the grippy glove – must try that.

  4. 4
    peter low

    enjoy reading your insights very much. I have made traditional M&T joints for years , and the current issue of Fine Woodworking has an article on the Festool Domino system. Have you used this system and if so, would appreciate your thoughts … I just bought a Kapex saw and it is incredible thanks

  5. 5
    Rob

    Thanks, Peter.

    Here’s a post on the Domino I wrote in 2009:
    http://www.rpwoodwork.com/blog/2009/06/12/the-domino-effect/

    And a few more points in 2010:
    http://www.rpwoodwork.com/blog/2010/12/27/more-second-thoughts/

    I like the Domino a lot. Interestingly, in 2009 I mentioned the benefit of longer dominos and a new machine. The Domino 700 has since become available. I still think they ought to make wider domino pieces for the medium and widest slot settings, but you can make your own.

    Over the years, I would still agree with the content of those posts, though I have developed more trust in the joint since then.

    Rob
