Let us continue with the previous post. If the wide piece of wood being held in the front vice is also fairly long, we need a second system that grips the right side of it. Otherwise, it will tend to slip down due to weight, especially pressure from planing the edge straight and square with a #5 or #7.

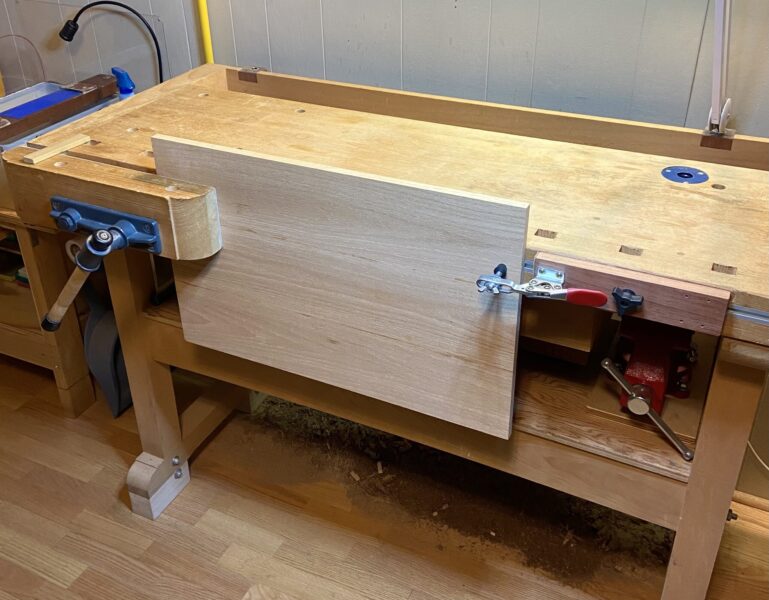

The photo above shows the system in action.

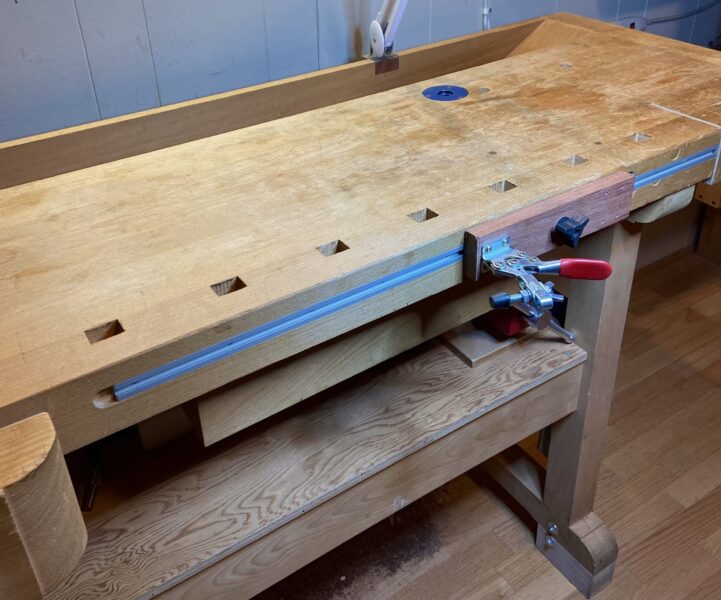

There is an aluminum T-track (“T-slot track”) (3/4” wide x 3/8” deep) screwed into a slot in the bench top made with a router bit. A small space on the left side of the slot allows you to easily enter the clamping device. The slot is not extended into the opening for the right-sided bench vice. The T-track never interferes with any other use of the workbench.

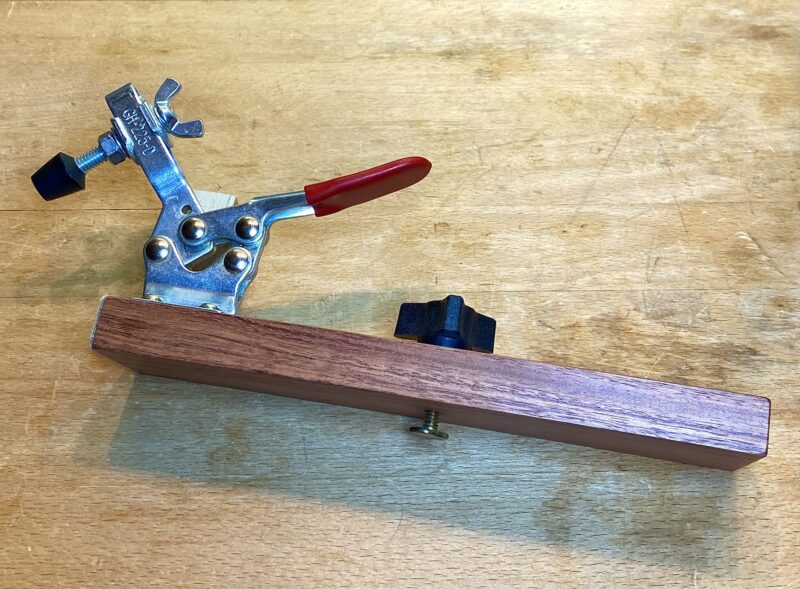

The workpiece is held with a quick-release toggle clamp with an anti-slip tip. It is attached with four screws on a sturdy piece of hardwood 3/4” x 10” x 2 1/4”. The toggle clamp is screwed in near the end of the wood piece.

This toggle clamp is GH-225-D. This holds the work I use.

A 1/4 x 20 x 1 1/2” T-track bolt is at the mid-point of the wood piece. It tightens with a three-branch star knob.

To use it:

Attach the toggle clamp device in approximate position on the T-track. Set the workpiece in the bench vise, using the compensating thickness piece on the left side of the vise (see the previous post), and tighten.  Then set the final position for the toggle clamp and tighten the T-track bolt.

Then adjust the height of the toggle clamp based on the tightness to the workpiece, set it, and tighten it.

This system allows adequate pressure to hold the right side of the workpiece. You can work well.

What about larger pieces and needing even more support on the right side of the workpiece? Coming up on the next post!
