Perhaps you use, or have at least tried, the sharpening method by hand discussed in the previous two posts. In any case, here is another approach that involves a straightforward angle holder.

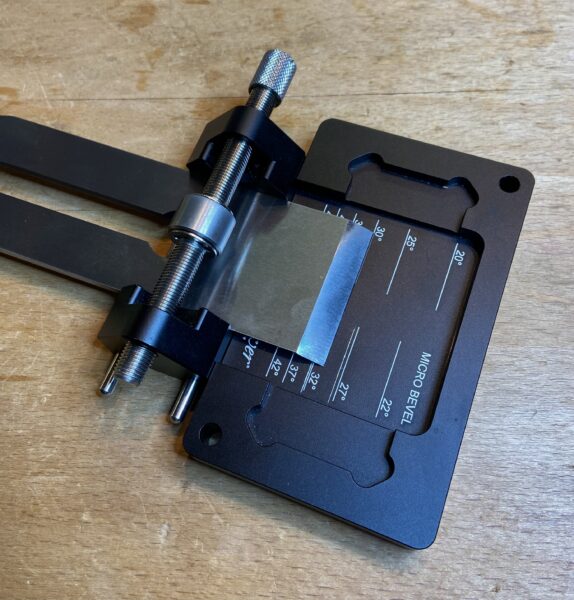

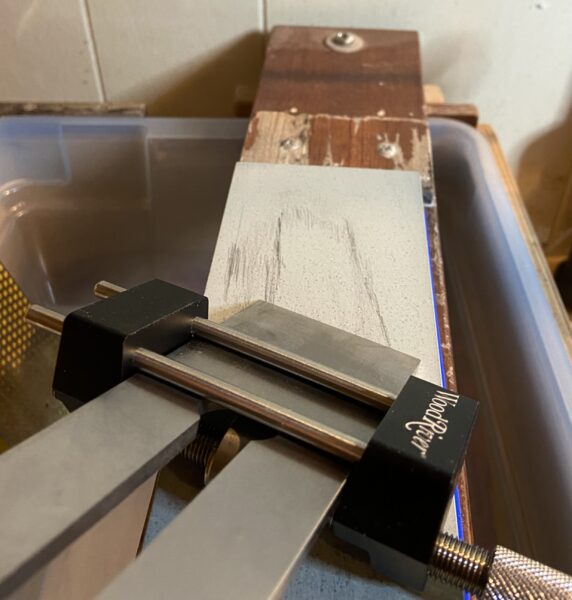

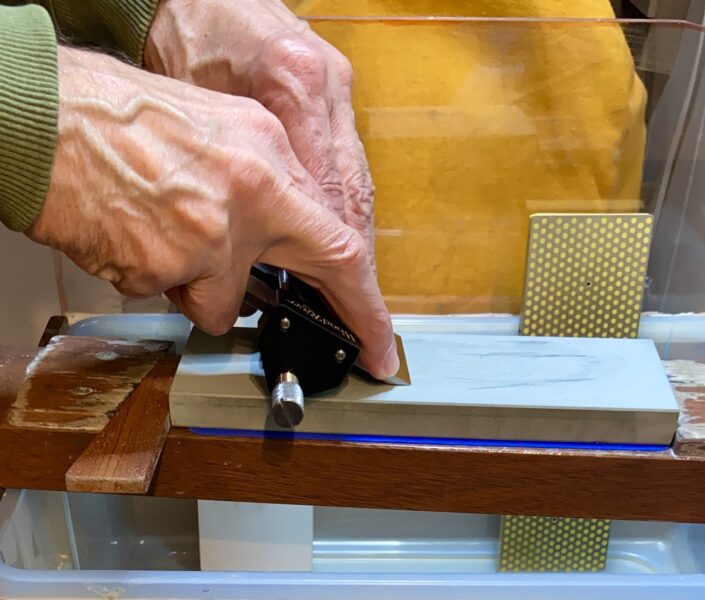

The woodworking tool (plane iron, chisel, etc.) is inserted into the holding guide. The pair is placed onto the angle gage, the tool is slid to match the angle number line or face, say 32°, and the holding bolt is tightened. Position the holder’s wheel on the sharpening stone and, back and forth, off you go sharpening. Easy overall.

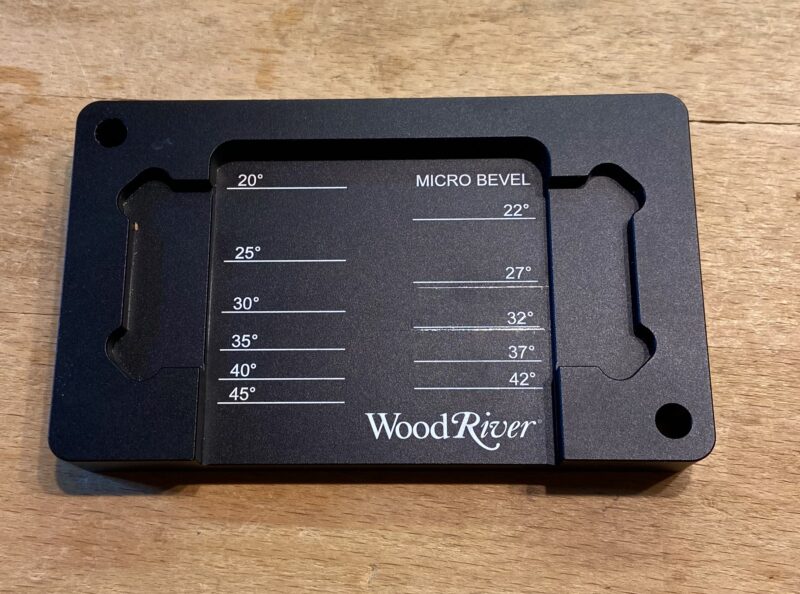

Notice my own lines for 27.5° and 32.5°.
There are several different designs for the holding guide. The one I use is from Woodcraft. It has a single, central, 1/2” wide wheel and can accommodate tools from 1/8” to 2 3/4” wide. Simple as can be
Play with Amazon and you can find many varieties. Some are like Woodcraft’s. One has a wheel more than 3” wide. Some use pairs of wheels, and some include two pairs of different widths. Some use a single pair of wheels which can be set on the inside or outside width of the tool griper. Woodpecker’s model is like this. Lie-Nielsen and Lee Valley make varieties that include sharpening angled blades. There is quite a creative selection.
For chisels, these work well for their straight edges. However, for most plane blades, the edge is importantly, slightly curved. This is most of our sharpening work. I easily manage this with the practical system described in the previous two posts.
Can managing the slightly curved edges be done with the tool systems described here? With a 1/2” single, central wheel as on the Woodcraft model, you can very slightly tilt and role on the right corner (then left) to varying degrees. With subtle, variable tilting and rolling, you can produce a decent curve. Not my choice, but it can be done.
It would be helpful if manufacturers simple make an extra, replaceable wheel with a subtle curve built into it. Even better: two extra wheels with slightly different curves.
Credit to Lee Valley/Veritas for the curved edge roller in their system, though I do not prefer it in some other respects, mostly based on complication.
Well, I hope this and the previous two articles help with your direction on hand sharpening. And you know that you cannot do excellent woodworking without really sharp tools!
